HT000504NPW01, Electric Motor Three Phase Rotor Squirrel CAGE 1Hp 1765 RPM 4P 143/5T 575 C/W 3 Leads WCF2 60Hz F-1/B3R(D) IP55 NEMA Premium Efficiency Rolled Steel IHP

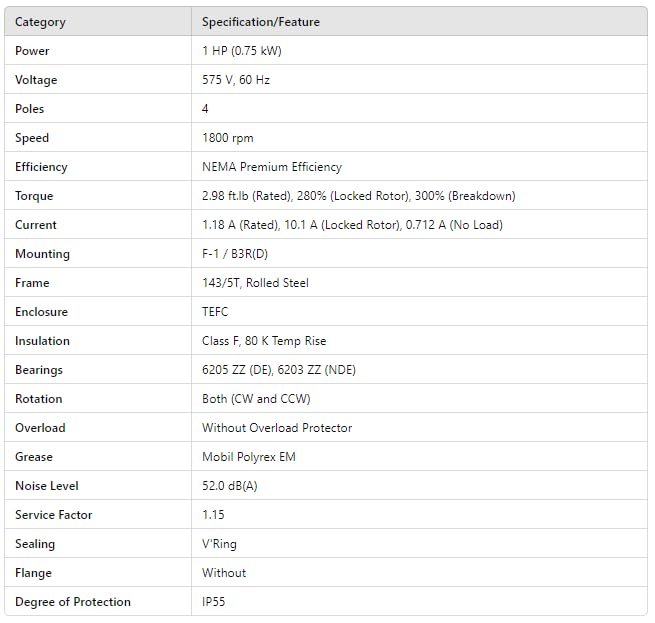

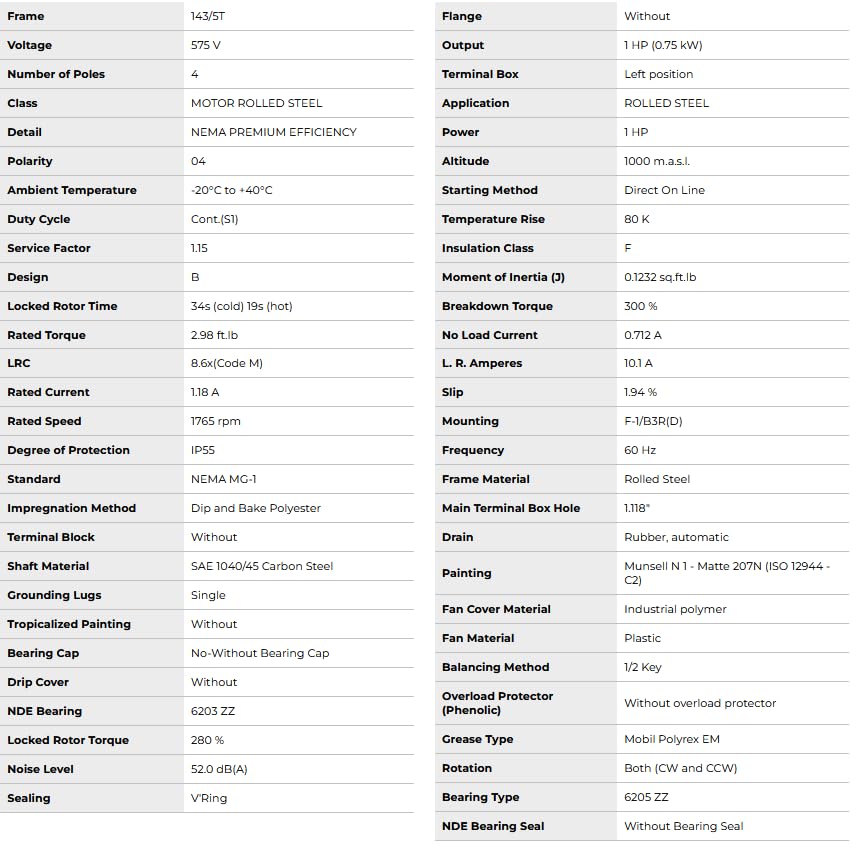

HT000504NPW01, ELECTRIC MOTOR THREE PHASE ROTOR SQUIRREL CAGE 1Hp 1765 Rpm 4P 143/5T 575 C/W 3 leads WCF2 60Hz F-1/B3R(D) IP55 NEMA PREMIUM EFFICIENCY ROLLED STEEL IHP Category Specification/Feature Power 1 HP (0.75 kW) Voltage 575 V, 60 Hz Poles 4 Speed 1800 rpm Efficiency NEMA Premium Efficiency Torque 2.98 ft.lb (Rated), 280% (Locked Rotor), 300% (Breakdown) Current 1.18 A (Rated), 10.1 A (Locked Rotor), 0.712 A (No Load) Mounting F-1 / B3R(D) Frame 143/5T, Rolled Steel Enclosure TEFC Insulation Class F, 80 K Temp Rise Bearings 6205 ZZ (DE), 6203 ZZ (NDE) Rotation Both (CW and CCW) Overload Without Overload Protector Grease Mobil Polyrex EM Noise Level 52.0 dB(A) Service Factor 1.15 Sealing V'Ring Flange Without Degree of Protection IP55

• Power: 1Hp (0.75 kW) Voltage: 575 V, 60 Hz
• Speed: 1800 rpm
• Bearings: 6205 ZZ (DE), 6203 ZZ (NDE) Mounting: Foot-mounted F-1 Flange: Without
• Rotation: Both (CW and CCW)
• Current: 1.18 A (Rated), 10.1 A (Locked Rotor), 0.712 A (No Load) Torque: 2.98 ft.lb (Rated), 280% (Locked Rotor), 300% (Breakdown)
