RATTMMOTOR XC150 CNC Linear Stage Motion Actuator XYZ Axis Cross Sliding Table, Double Linear Slide Rail Guide 1605 Ballscrew+Nema23 Stepper Motor and Bracket for CNC Router (200mm)
US$92.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.webado.de
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$92.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.webado.de
Free 30-day returns Details
Product details
| Management number | 219315025 | Release Date | 2026/05/03 | List Price | US$92.00 | Model Number | 219315025 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- ✅【High load capacity】Horizontal load of 50kg: meets the horizontal feed requirements of heavy-duty CNC, automated production lines, and large inspection equipment, can carry heavy-duty workpieces and fixtures, and has no accuracy decrease caused by insufficient load; Vertical load of 30kg: When installed vertically (Z-axis), it can stably carry a load of 30kg. Coupled with the self-locking feature of the stepper motor, it can achieve power-off and anti fall, meeting the Z-axis lifting requirements.

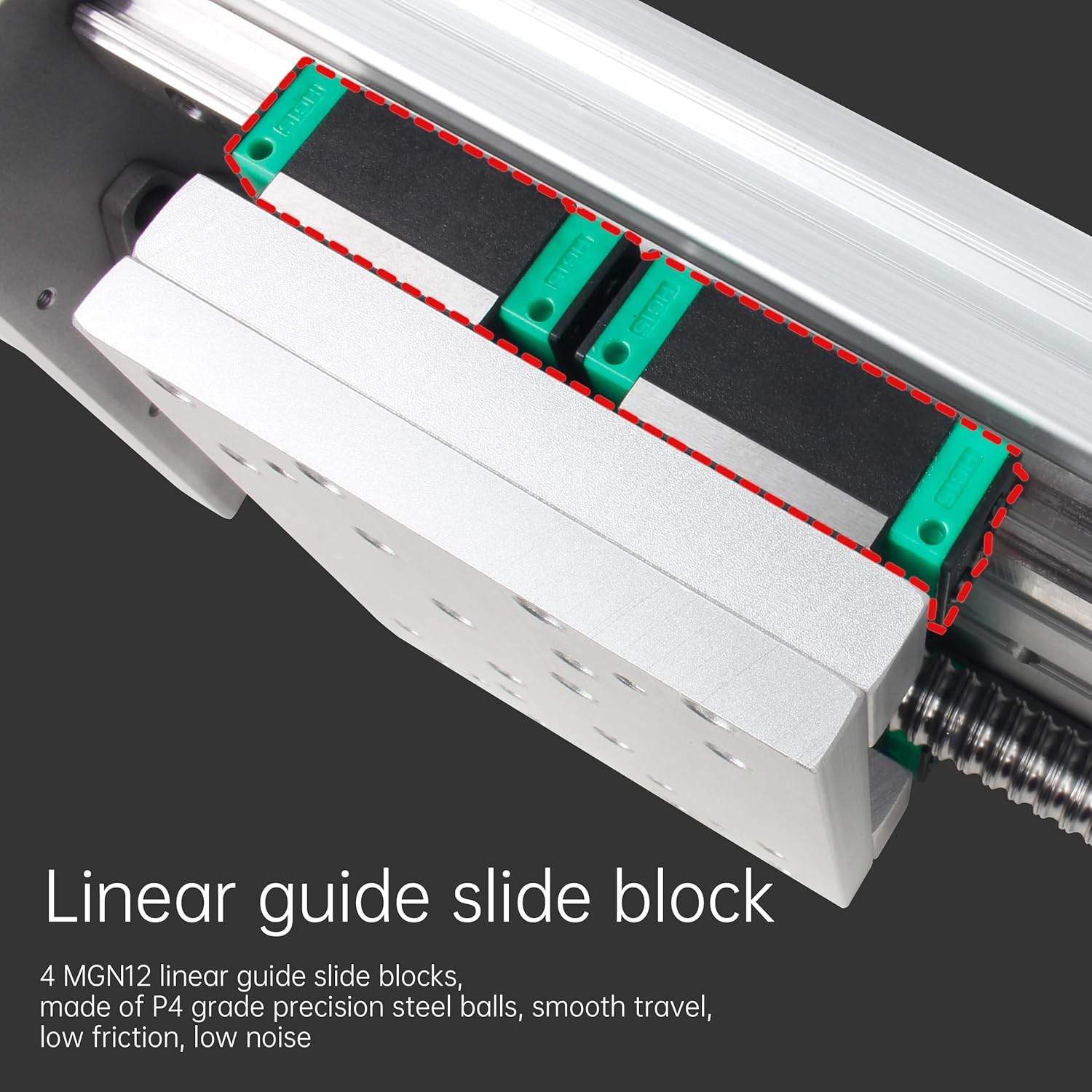

- ✅【High rigidity linear guides+4 sliders】The symmetrical design of dual guide rails and 4 sliders increases the load bearing capacity by 200% compared to a single guide rail and 2 sliders, significantly enhancing the module's resistance to bending, torsion, and overturning. When operating under heavy loads, the slide table does not shake or sink, and the machining accuracy is not affected by the load.
- ✅【Widened aluminum alloy sliding table】Widening the slide table and thickening the aluminum alloy body, with a rigid full pull, and no resonance or vibration during high-speed operation (up to 500mm/s, depending on the lead of the screw), suitable for high-precision machining scenarios; Anodized surface treatment, corrosion-resistant and wear-resistant, long-term use in workshop oil stains and humid environments without rusting, with a service life more than twice that of ordinary carbon steel modules.
- ✅【Single precision ball screw】Rolling friction transmission improves the efficiency of trapezoidal screw by more than three times, with a positioning accuracy of ± 0.02mm and a repeat positioning accuracy of ± 0.01mm, completely eliminating crawling and backlash problems, balancing high-speed operation and long-term accuracy stability. The repeat positioning accuracy meets the micrometer level requirements of CNC machining and automated assembly.
- ✅【Standard 57 step stepper motor+integrated motor bracket】57 stepper motor, with sufficient torque, perfectly matches the driving requirements of 50kg horizontal/30kg vertical load, with fast start stop response and precise positioning; The integrated motor bracket achieves precise coaxiality matching between the motor and the module, avoiding screw wear and abnormal noise caused by installation deviation. The motor docking can be completed by hand without additional processing.
| Item Weight | 15.73 pounds |
|---|---|
| Manufacturer | RATTMMOTOR |
| Package Dimensions | 20.47 x 8.27 x 5.51 inches |
