SJRC Micro Firewall Applicance Dual 10Gbe Mini PC 12th Gen Octa Core i3 N305, 2X i226V 2.5GbE LAN, 2xSFP+ 10Gbps, Support OPNsense, TF Slot, 2xHD, Type-C, Barebone NO RAM M.2 NVMe NO SSD
Product details
| Management number | 228896678 | Release Date | 2026/05/31 | List Price | US$149.96 | Model Number | 228896678 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
SJRC Dual SFP+ Dual 2.5G LAN 12th Gen N305 Firewall Mini PC CPU: In-tel 12th Gen N305 8 cores, 8 threads, 6MB Cache, up to 3.8 GHz. GPU: UHD Graphics with 32 EUs. TDP: 15 W. System: NO System RAM: 1 x DDR5 4800MHz SODIMM slot, max 32 GB. SSD: 1 x M.2 2280 NVMe SSD slot on the back of motherboard. Expand: 1 x SATA 3.0 slot for 2.5" HDD/SSD (SATA 3.0 cable included). LAN Port: 2 x 10GbE SFP+(82599ES), 2 x 2.5GbE I226-V TF Slot: TF card holder support system boot or data storage. Display: 2 x HD2.0 4K@60HZ 2 display. FAN: 1 x 4 PIN 8010 fan socket, fan power supply base supports temperature control. Feature: Support AES-NI, Auto power on, PXE boot, Wake on LAN. I/O: 2 x SFP+, 2 x LAN, 1 x Type-C 3.2 Gen1, 1 x USB3.2 Gen1, 4 x USB2.0, 1 x TF card slot, 1 x SPK/MIC, 2 x HD2.0. Firewall Case: Aluminum alloy Working Temperature: 0°c~70°c Power: DC 12V 55*22 Packing List: 1 x SJRC Firewall Dual SFP+ Mini PC, 1 x Power Adapter, 1 x SATA3.0 Cable, 1 x 4 Pin Fan Cable, 1 x VESA Mount.
- SJRC 10GbE firewall with 2 x SFP+ 10GbE LAN with Core i3 N305 processors, 8 Cores 8 Threads, 6M Cache, up to 3.8GHz, DC 12V power supply with power cable. Tap "Delete" enter BIOS setup
- Micro firewall appliance 10GbE with 1 x DDR5 4800MHz SODIMM RAM slot, up to 32 GB, 1 x M.2 2280 NVMe SSD slot on the back of motherboard, 1 x SATA 3.0 slot for 2.5" HDD/SSD (SATA 3.0 cable included), 1 x M.2 E Key 2230 Wifi slot(M.2 NVMe adapter board pre-installed, M.2 NVMe SSD can be installed by default)

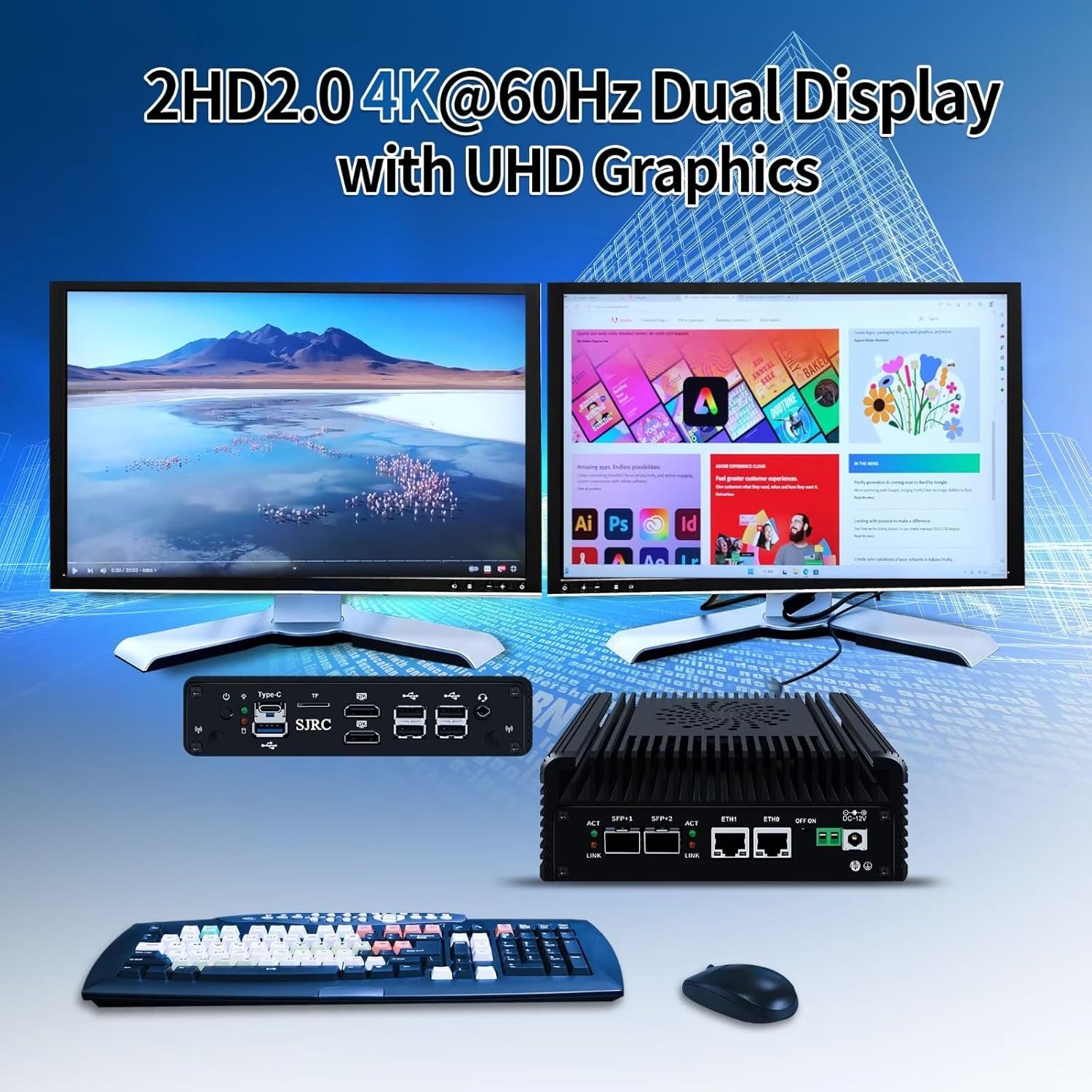

- SJRC micro firewall appliance with 2 x 82599ES 10G SFP+, 2 x i226-V 2.5G RJ45 LAN, 1 x Type-C 3.2 Gen1, 1 x USB3.2 Gen1, 4 x USB2.0, 1 x TF card slot, 1 x SPK/MIC, 2 x HD2.0 4K@60Hz dual display with UHD Graphics
- Mini PC firewall SFP+ support OPNsense, Unbutun, ESXI, PVE, and other popular open-source software solutions, support AES-NI, Auto power on, PXE boot, Wake on LAN
- Passive heatsink + fan-assisted cooling system, 1 x 4-pin 8010 fan header to support an additional fan at the bottom, compact aluminum alloy housing, supports wall mounting via VESA bracket (included)
| ASIN | B0DG5R73MC |
|---|---|
| Brand | SJRC |
| Color | Black |
| RAM Type | DDR5 RAM |
| Model Name | SJD10GBD2.5LAN-i3 N305 |
| Resolution | 3840 x 2160 |
| Style Name | 12th Gen Core i3 N305 |
| Item Weight | 2.65 Pounds |
| Aspect Ratio | 16:9 |
| Manufacturer | SJRC |
| Memory Speed | 4800 MHz |
| Model Number | SJD10GBD2.5LAN-i3 N305 |
| Video Output | HDMI |
| BuiltIn Media | 1 x SJRC Firewall Dual SFP+ Mini PC, 1 x Power Adapter, 1 x SATA3.0 Cable, 1 x 4 Pin Fan Cable, 1 x VESA Mount. |
| Item Dimensions | 6.1 x 4.92 x 2.36 inches |
| Processor Brand | Intel |
| Processor Count | 8 |
| Processor Speed | 3.8 GHz |
| Total Usb Ports | 5 |
| CPU Model Number | N305 |
| Operating System | Linux |
| Processor Series | Intel Core i3 |
| Native Resolution | 3840 x 2160 |
| Hardware Interface | Ethernet, HDMI, SATA 6.0 Gb/s, USB |
| Memory Clock Speed | 4800 MHz |
| Additional Features | Wps |
| Hard Disk Interface | Solid State |
| Wireless Technology | Wi-Fi |
| Graphics Coprocessor | Intel UHD Graphics |
| Graphics Description | UHD Graphics for 12th Gen(32EUs) |
| HumanInterface Input | Microphone |
| Hard Disk Description | SSD |
| RAM Memory Technology | DDR5 |
| Memory Slots Available | 1 |
| Video Output Interface | HDMI |
| Connectivity Technology | Ethernet |
| Graphics Card Interface | Integrated |
| Ram Memory Maximum Size | 32 GB |
| Specific Uses For Product | Business |
| Display Resolution Maximum | 3840x2160 |
| Total Number of HDMI Ports | 2 |
| Cache Memory Installed Size | 6 MB |
| Number of Component Outputs | 2 |
| Personal Computer Design Type | Mini PC |
